Key Takeaways
- A CBCT scan provides a full 3D view of the jawbone, nerves, and sinuses that 2D X-rays cannot deliver
- CBCT imaging changes the surgical plan in approximately 30% of dental implant cases
- The scan takes under 30 seconds and exposes patients to significantly less radiation than a medical CT
- CBCT is mandatory before implants near the inferior alveolar nerve, maxillary sinus, or when bone grafting is required
- DCDC offers same-day CBCT scans in Dubai Healthcare City with digital reports shared directly with referring dentists
A CBCT scan for dental implants is a three-dimensional imaging study that captures the jawbone, surrounding nerves, sinus cavities, and tooth roots in a single low-dose scan lasting less than 30 seconds. Unlike a standard panoramic X-ray, cone beam computed tomography (CBCT) generates a volumetric 3D dataset that allows implant surgeons to measure bone dimensions down to a fraction of a millimeter, identify hidden pathology, and digitally plan implant placement before making a single incision.
Why Is a CBCT Scan Needed Before Dental Implants?
Dental implant placement is a surgical procedure that involves drilling into living bone and inserting a titanium post that must integrate with surrounding tissue over several months. The margin for error is extremely small. Placing an implant even 1 to 2 millimeters off course can damage a nerve, perforate the sinus floor, or result in insufficient bone support that leads to implant failure. A CBCT scan eliminates much of this risk by providing the surgeon with a complete anatomical map before surgery begins.
Traditional 2D dental X-rays, including panoramic radiographs (OPG), compress three-dimensional anatomy into a flat image. This means structures overlap, distances are distorted, and critical information about bone width is entirely absent. A panoramic X-ray shows height but not the buccolingual (cheek-to-tongue) dimension of the jaw. Since an implant occupies space in all three dimensions, planning with only two dimensions is fundamentally incomplete.
The European Association for Osseointegration (EAO) and the International Team for Implantology (ITI) both recommend CBCT imaging whenever conventional radiography does not provide sufficient information for safe implant placement. In practice, this applies to the majority of implant cases, especially those involving the posterior mandible near the inferior alveolar nerve or the posterior maxilla near the sinus floor.
Key limitations of 2D imaging that CBCT resolves:
- No bone width measurement -- OPG only shows height, not the critical buccolingual dimension
- Magnification distortion -- panoramic X-rays magnify structures by 15 to 30%, making measurements unreliable
- Superimposition of structures -- overlapping anatomy hides pathology and anatomical landmarks
- No cross-sectional views -- 2D imaging cannot show the internal architecture of the ridge
- Nerve canal invisibility -- the inferior alveolar nerve canal is often poorly visualized or completely obscured on panoramic films
What Does a CBCT Scan Reveal for Implant Planning?
A single CBCT scan provides the implant surgeon with a comprehensive dataset that would otherwise require multiple imaging studies. The volumetric data can be viewed in axial, coronal, sagittal, and oblique planes, as well as reconstructed into panoramic and cross-sectional views specific to the implant site. Here is what the scan reveals:
- Available bone volume -- precise height, width, and depth measurements at each proposed implant site, accurate to 0.1 mm
- Bone density and quality -- differentiation between dense cortical bone and spongy trabecular bone, which affects implant stability and healing time
- Inferior alveolar nerve canal position -- exact location and course of the nerve that provides sensation to the lower lip and chin, critical for mandibular implants
- Mental foramen location -- the point where the nerve exits the jawbone, which must be avoided during premolar-region implants
- Maxillary sinus floor height -- the distance between the ridge crest and the sinus floor, determining whether a sinus lift procedure is needed
- Neighboring tooth roots -- exact root positions and angulations to ensure adequate spacing between implants and natural teeth
- Jaw anatomy and ridge morphology -- concavities, undercuts, and lingual anatomy that affect implant angulation and length selection
- Existing pathology -- cysts, granulomas, residual root tips, impacted teeth, and bony lesions that may need treatment before implant placement
- Cortical plate thickness -- the density of the outer bone layer that provides primary stability for the implant at the time of placement
This level of detail allows the surgeon to select the optimal implant diameter, length, and angulation before entering the operating room. It also enables the creation of surgical guides -- 3D-printed templates that direct the drill path during surgery, ensuring the implant is placed exactly where it was digitally planned.
How CBCT Improves Implant Success Rates
Dental implant success rates have improved significantly over the past two decades, and the adoption of 3D imaging is a major contributing factor. Published research in the International Journal of Oral & Maxillofacial Implants reports that implants placed with CBCT-guided planning achieve success rates exceeding 97%, compared to approximately 90 to 95% when placed using only 2D imaging. The difference is most pronounced in complex cases involving limited bone, proximity to vital structures, or full-arch rehabilitation.
The improvement comes from three key areas:
- Precise implant positioning -- 3D planning allows the surgeon to place implants in the ideal prosthetic position, resulting in better aesthetics and biomechanics
- Avoidance of complications -- nerve injury, sinus perforation, and fenestration (bone breakthrough) rates decrease dramatically with 3D planning
- Guided surgery accuracy -- CBCT data feeds directly into guided surgery software, producing drill guides that achieve placement accuracy within 0.5 mm of the planned position
"In my experience reviewing CBCT scans for implant cases, the 3D data changes the surgical plan in approximately 30% of patients. In some cases, the bone is thinner than expected. In others, the nerve canal is positioned higher than the panoramic film suggested. Without CBCT, these findings would only become apparent during surgery -- when the consequences are much more serious." -- Dr. Osama Elzamzami, Consultant Radiologist, DCDC
Guided implant surgery represents the most advanced application of CBCT data. The workflow begins with a CBCT scan, which is imported into implant planning software such as Nobel Clinician, Blue Sky Plan, or coDiagnostiX. The surgeon virtually places each implant in the ideal position, then a surgical guide is 3D-printed that snaps onto the patient's teeth or gums. During surgery, the guide directs the drill at the exact angle and depth planned digitally, reducing surgical time and improving predictability.
CBCT vs OPG for Dental Implants
An OPG (orthopantomogram) is the traditional panoramic X-ray that most dental clinics use for routine screening. While it provides a useful overview of the teeth and jaws, it has significant limitations when used for implant planning. The following table compares CBCT and OPG across the key parameters that matter for dental implant placement.
| Parameter | CBCT (Cone Beam CT) | OPG (Panoramic X-Ray) |
|---|---|---|
| Image Type | 3D volumetric (axial, sagittal, coronal, cross-sectional) | 2D flat panoramic image |
| Bone Width Measurement | Yes -- accurate buccolingual measurement | No -- only shows height |
| Bone Density Assessment | Yes -- Hounsfield-equivalent values | Limited -- qualitative only |
| Nerve Canal Visualization | High-resolution 3D tracing of entire canal | Often obscured or poorly visible |
| Sinus Floor Measurement | Precise millimeter measurement | Approximate, distorted by magnification |
| Magnification | True 1:1 measurements | 15 to 30% magnification distortion |
| Guided Surgery Compatible | Yes -- DICOM files import into planning software | No |
| Scan Time | 15 to 30 seconds | 15 to 20 seconds |
| Radiation Dose | 20 to 200 microSieverts (depending on FOV) | 5 to 25 microSieverts |
| Cost in Dubai | AED 500 to 1,200 | AED 100 to 300 |
CBCT provides substantially more diagnostic information for implant planning despite a modestly higher radiation dose.
When is an OPG sufficient? An OPG may be adequate for straightforward single-implant cases in regions with clearly abundant bone and no proximity to vital structures. For example, replacing a lower premolar with visible adequate bone height and no nerve proximity on the panoramic film may not require CBCT in every instance.
When is CBCT essential? CBCT becomes necessary whenever there is any doubt about bone volume, nerve proximity, sinus involvement, or when multiple implants are planned. The American Dental Association (ADA) recommends CBCT when conventional imaging does not provide the diagnostic information needed for treatment planning. Most implant specialists now consider CBCT the standard of care for all but the simplest cases.
Planning Dental Implants? Get a CBCT Scan First
At DCDC in Dubai Healthcare City, our CBCT scan gives your implant surgeon the precise 3D data needed for safe, accurate implant placement. Same-day appointments and digital report delivery to your dentist.
The CBCT Scan Process for Implant Patients
The CBCT scan process is quick, painless, and requires no special preparation. Understanding what to expect helps patients feel comfortable and ensures optimal image quality.
Step 1: Referral and scheduling. The patient's dentist or implant surgeon provides a referral specifying the region of interest (e.g., upper right quadrant, full mandible, both jaws). At DCDC, patients can book same-day CBCT appointments in most cases.
Step 2: Preparation. No fasting or medication changes are needed. The patient removes any metal jewelry, earrings, eyeglasses, and removable dental appliances (dentures, retainers) that could create artifacts on the scan. If the patient has a radiographic guide (a template with radiopaque markers indicating planned implant positions), it is placed in the mouth before scanning.

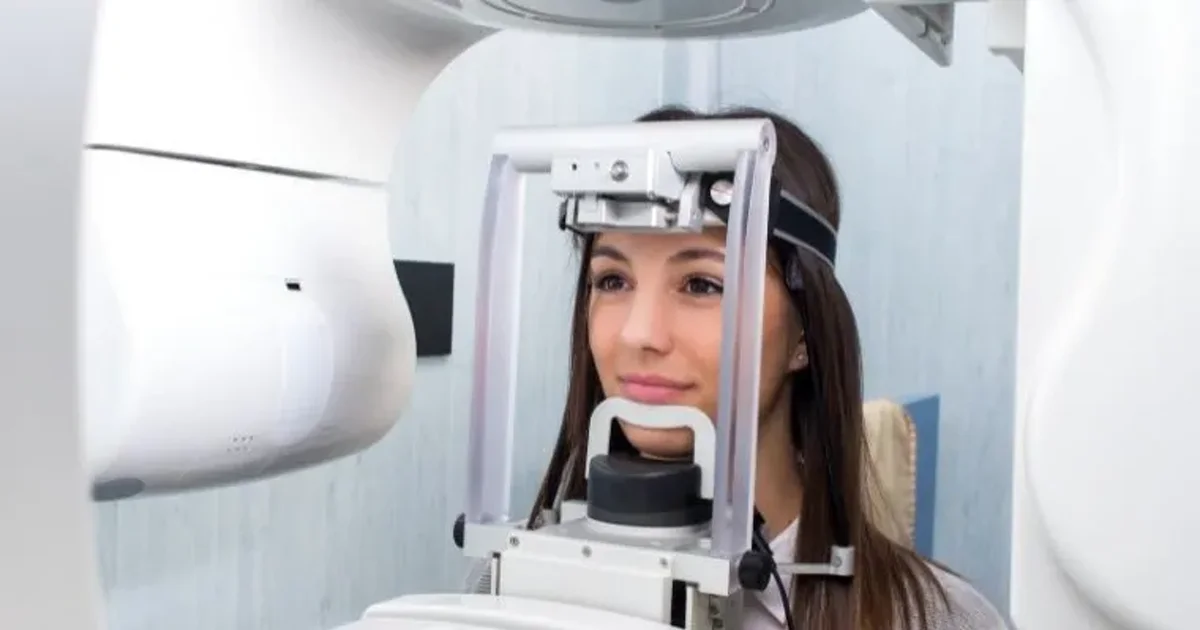

Step 3: Positioning. The patient stands or sits in the CBCT unit with the chin resting on a support. The head is stabilized with positioning aids to prevent movement. The technologist adjusts the field of view (FOV) to capture the region specified by the referring clinician -- a small FOV for a single implant site or a larger FOV for full-arch cases.
Step 4: The scan. The C-arm rotates around the patient's head, capturing hundreds of projection images in a single 15 to 30-second rotation. The patient must remain completely still during this time. The total radiation exposure is comparable to a few days of natural background radiation.
Step 5: Image reconstruction. The raw data is processed by the CBCT software into a volumetric 3D dataset. This produces axial, sagittal, and coronal slices, as well as panoramic reconstructions and cross-sectional views perpendicular to the dental arch.
Step 6: Reporting and delivery. A radiologist reviews the scan and generates a detailed report noting bone measurements, nerve canal positions, sinus floor heights, and any incidental findings such as cysts or pathology. The DICOM files and report are shared digitally with the referring dentist, who can then import the data into implant planning software.
The entire process, from arriving at the clinic to completing the scan, typically takes 15 to 20 minutes. The referring dentist receives the DICOM files and radiologist report, usually within 24 hours, enabling them to begin digital implant planning immediately.
When Is CBCT Mandatory for Implants?
While CBCT is valuable for virtually all implant cases, certain clinical scenarios make it an absolute requirement. Proceeding without 3D imaging in these situations significantly increases the risk of surgical complications.
- Implants near the inferior alveolar nerve -- any implant in the posterior mandible (molar or premolar region) where the nerve canal's position is uncertain on 2D imaging
- Sinus lift procedures -- when the maxillary sinus floor is low and a sinus elevation (lift) is required to create sufficient bone height for implant placement
- Bone grafting cases -- when the ridge is too narrow or too short and augmentation is needed before or during implant placement
- Multiple adjacent implants -- placing two or more implants side by side requires precise spacing and angulation that 2D imaging cannot reliably guide
- Full-arch rehabilitation (All-on-4, All-on-6) -- these complex procedures involve placing four to six implants at precise angles to support a full prosthesis, requiring complete 3D jaw anatomy
- Immediate implant placement -- inserting an implant at the same appointment as tooth extraction requires detailed knowledge of socket dimensions, bone walls, and surrounding anatomy
- History of failed implants -- understanding why a previous implant failed (bone loss, poor positioning, infection) requires 3D assessment of the residual bone
- Suspected pathology at the implant site -- cysts, granulomas, or radiolucencies seen on 2D imaging need CBCT for accurate characterization before implant surgery
"I recall a patient referred for a CBCT scan before upper molar implants. The panoramic X-ray showed what appeared to be 10 millimeters of bone below the sinus. The CBCT revealed only 3 millimeters of actual bone height -- the rest was a thin sinus membrane draping over a septum that created the illusion of bone on the 2D film. Without the CBCT, the surgeon would have placed the implant expecting solid bone and instead perforated into the sinus cavity. The CBCT finding changed the treatment plan to a sinus lift procedure first, and the implants were ultimately placed successfully." -- Dr. Osama Elzamzami, Consultant Radiologist, DCDC
Cost of CBCT for Dental Implant Planning
The cost of a CBCT scan for dental implant planning in Dubai varies depending on the field of view, the number of jaws scanned, and whether a radiologist report is included. Below is a general breakdown of CBCT pricing in the UAE market.
| CBCT Scan Type | Typical Cost (AED) | Common Use Case |
|---|---|---|
| Single jaw (small FOV) | 500 -- 800 | Single implant or localized area |
| Single jaw (medium FOV) | 700 -- 1,000 | Quadrant or half-jaw implant planning |
| Both jaws (large FOV) | 900 -- 1,200 | Full-arch implants, All-on-4/6 planning |
| CBCT with radiologist report | Included or +100 -- 200 | Detailed pathology assessment and measurements |
Prices are approximate and vary by facility. DCDC provides competitive pricing with same-day availability.
Is CBCT included in implant packages? Some implant clinics in Dubai bundle the CBCT scan into their implant treatment fee. Others bill it separately. When comparing implant package prices, patients should clarify whether CBCT imaging is included, as it is a necessary component of modern implant planning. At DCDC, the CBCT is billed as a standalone imaging service, which benefits patients whose dentist refers them specifically for imaging without bundling unnecessary fees.
Insurance coverage. Most dental insurance plans in the UAE cover diagnostic imaging when it is medically indicated. CBCT for implant planning is typically covered when the referring dentist provides clinical justification. Patients should verify their coverage with their insurance provider before the appointment. DCDC accepts most major insurance plans and provides direct billing for eligible patients. For more details on CBCT pricing, see our guide on CBCT scan cost in Dubai.
When weighed against the cost of a failed implant -- which can exceed AED 10,000 to 15,000 including removal, bone grafting, and re-implantation -- the AED 500 to 1,200 investment in a CBCT scan is a fraction of the potential cost of complications. Most implant surgeons consider it an essential part of the treatment investment, not an optional extra.
CBCT for Dental Implants at DCDC
Doctors Clinic Diagnostic Center (DCDC) in Dubai Healthcare City provides CBCT dental scans using advanced cone beam CT technology with sub-millimeter resolution. The center serves both patients referred by external dentists and implant surgeons, as well as walk-in patients who need pre-implant imaging.
Every CBCT scan at DCDC is reviewed by a consultant radiologist who provides a comprehensive report covering bone measurements, nerve canal mapping, sinus floor assessment, and identification of any incidental pathology. The DICOM files are delivered digitally, allowing the referring dentist to import them directly into implant planning software such as Nobel Clinician, Simplant, or Blue Sky Plan.
The clinic offers same-day CBCT appointments with most results available within 24 hours. Located in Dubai Healthcare City, DCDC is easily accessible from Oud Metha, Karama, Business Bay, and Downtown Dubai. The center accepts most major insurance plans and provides transparent self-pay pricing for uninsured patients.
For dentists and implant surgeons looking for a reliable imaging partner, DCDC provides a streamlined referral process with digital report delivery, direct communication with the reporting radiologist when needed, and consistently high image quality that supports precise implant planning.
Book Your CBCT Scan for Dental Implants
At Doctors Clinic Diagnostic Center in Dubai Healthcare City, we provide high-resolution CBCT dental scans for precise implant planning. Same-day appointments available with digital report delivery to your dentist.
Frequently Asked Questions
Final Thoughts
A CBCT scan has become an indispensable part of modern dental implant planning. The 3D imaging data it provides -- precise bone measurements, nerve canal mapping, sinus floor assessment, and pathology detection -- gives implant surgeons the information they need to place implants safely, accurately, and predictably. Research consistently shows that CBCT-guided implant planning improves success rates and reduces complications, particularly in complex cases.
For patients preparing for dental implants, requesting a CBCT scan is one of the most important steps in ensuring a successful outcome. The scan is fast, painless, and low-dose, and the information it provides can prevent serious complications including nerve damage, sinus perforation, and implant failure. At Doctors Clinic Diagnostic Center in Dubai Healthcare City, we provide high-resolution CBCT imaging with consultant radiologist reporting and digital delivery to your implant surgeon. Whether you need imaging for a single implant or full-arch rehabilitation, our team is ready to support your treatment plan.
Sources & References
This article was reviewed by our medical team and references the following sources:
- International Journal of Oral & Maxillofacial Implants -- CBCT in Implant Dentistry: Systematic Review
- European Association for Osseointegration (EAO) -- Clinical Practice Guidelines for Imaging in Implant Dentistry
- American Dental Association (ADA) -- Selection Criteria for Dental Radiography
- ITI Treatment Guide -- Implant Therapy in the Esthetic Zone
